Flow Through Cells
A variety of flow through cells in different configurations for spectrophotometric experiments where a constantly flowing sample can be passed through the observation chamber.
Type 49 Micro Demountable Flow Through Cell (Lightpaths: 0.05-2mm)
Type 49 Micro Demountable Flow Through Cell (Lightpaths: 0.05-2mm)

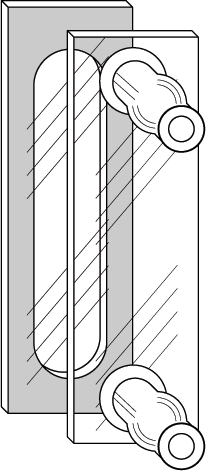

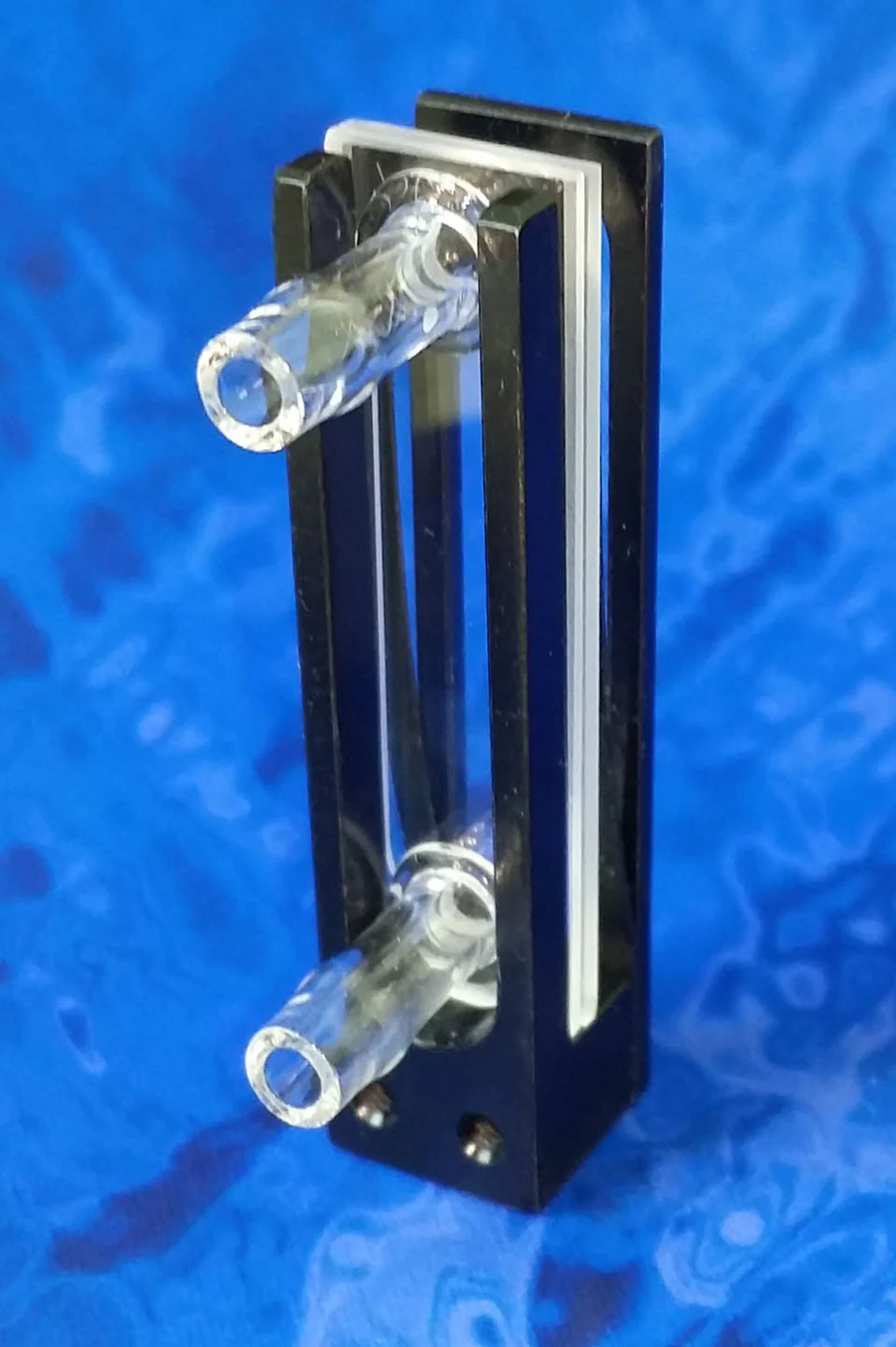

Firefly's Type 49 demountable flow through cell with sides tubes enables a constant flow through the observation chamber. The demountable slides enables a user to insert a small sample and reassemble the cuvette.
Features of FireflySci Type 49 Demountable Flow Through Cell with Side Tubes:
Highly accurate results, only need to test sample once.
Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
Made by hand, ensuring high quality optical polishing with no defects.
Each cell goes through a vigorous inspection process before leaving our factory.
Fire-fused to ensure that cuvettes are robust and durable.
Comes in several different materials: (UV Quartz & IR Quartz)
Two windows polished
Inlet/ Outlet tubes: OD5 X ID3 X L15mm
Height is without tubes.
Lightpaths from 0.1-2mm available.
Tubes are made of quartz.
Thickness of cover slide is 1.25mm.
O-demountable flow-through spectrophotometer cuvette with removable window
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Chamber Length | Chamber Width | Chamber Height | Capacity |
|---|---|---|---|---|---|---|---|---|
| 0.05mm | Flow Through | 2.6mm | 12.5mm | 45.0mm | 0.05mm | 9.0mm | 38.0mm | 15µl |
| 0.1mm | Flow Through | 2.6mm | 12.5mm | 45.0mm | 0.10mm | 9.0mm | 38.0mm | 30µl |
| 0.2mm | Flow Through | 2.7mm | 12.5mm | 45.0mm | 0.20mm | 9.0mm | 38.0mm | 60µl |
| 0.5mm | Flow Through | 3.0mm | 12.5mm | 45.0mm | 0.50mm | 9.0mm | 38.0mm | 150µl |
| 1mm | Flow Through | 3.5mm | 12.5mm | 45.0mm | 1.00mm | 9.0mm | 38.0mm | 300µl |
| 2mm | Flow Through | 4.5mm | 12.5mm | 45.0mm | 2.00mm | 9.0mm | 38.0mm | 600µl |
![firefly_logo_FINAL [Black].jpg](https://images.squarespace-cdn.com/content/v1/5411d5c0e4b02e1c8b27565a/1434491508803-XB4OF7YDY46Z72L5U5AP/firefly_logo_FINAL+%5BBlack%5D.jpg){kind=logo}
Cuvette mount for rectangular cells with a lightpath of less than 5mm.
This mount enables short pathlength cuvettes to fit in a 10mm cuvette holder.
